05.09.2011 NEW ZF 8-SPEED AUTO TRANSMISSION SET TO DEBUT ON SELECT CHRYSLER, DODGE AND LANCIA MODELS

CHRYSLER 300 MY 2012 ZF 8HP70 8-SPEED TRANSMISSION

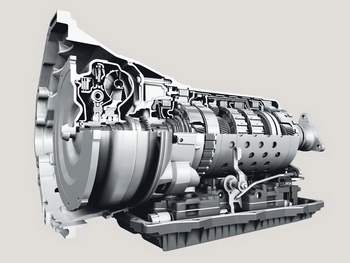

ZF 8HP70 8-SPEED TRANSMISSION

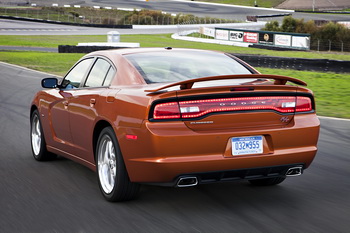

DODGE CHARGER MY 2012 ZF 8HP70 8-SPEED TRANSMISSION

Chrysler Group has announced that the much-needed new ZF-sourced eight-speed automatic transmission (middle) is now set to make production debut on the Model Year 2012 Chrysler 300 (top) and its platform sister, the Dodge Charger (bottom), as well as in Lancia's rebadged version of the former model.

Chrysler Group has announced that the much-needed new ZF-sourced eight-speed automatic transmission is now set to make production debut on the Model Year 2012 Chrysler 300 and its platform sister, the Dodge Charger, as well as in Lancia's rebadged version of the former model. It will also mark the debut of an 8-speed automatic transmission in a North American manufactured vehicle.

The new eight-speed automatic, introduced and licensed through ZF and often found on high-end luxury cars including Audi, Bentley, BMW, Range Rover and Rolls Royce, will be available on selected models of the 300 and Charger. With the newly facelifted 300 and Charger currently seeing their sales down year-on-year versus pre-facelift versions, the new transmission option should give the models a useful fillip.

Initially, the transmission will be only mated to the 3.6-litre V6 "Pentastar" engine that was introduced last year. The 8-speed auto will debut under the bonnet of Lancia's Thema at this month's Frankfurt IAA when the production version is launched.

Designed for rear-wheel-drive platforms there are presently only a few future uses within the Fiat Group for the new ZF transmission. As well as being fitted to the Pentastar V6-powered version of Lancia's newly rebadged Chrysler 300 sedan it will also be fitted to the VM Motori-equipped diesel Thema in the future. It may also appear on Maserati's future "Baby Quattoporte" sedan, which will be based on the 300/Charger platform.

The result is a four mile-per-gallon increase on the 300/Charger that will push highway fuel economy to an EPA-rated 31 mpg for the Model Year 2012 Chrysler 300 and 2012 Dodge Charger – up from 27 mpg highway over last year’s model. The transmission efficiency and wide ratio spread also provide the better fuel economy in city traffic. Fuel economy for both models is 19 mpg on the EPA city cycle - an increase of five percent over last year’s five speed automatic. With eight speeds, driving at a lower rpm in both city and highway environments also effectively helps reduce emissions by nearly 11 percent on both vehicles.

All-wheel-drive variants of the transmission will also be available on both models for the 2012 Model Year. Designed as a modular transmission, the 845RE allows for the addition of Chrysler’s all-wheel drive system. This all-wheel drive is engaged only when needed, requires no driver input and helps improve fuel economy by only engaging the front-drive wheels when there is excessive wheel spin.

Compact and lightweight, the new transmission required no structural changes to either vehicle and despite the addition of more gears, the transmission actually weighs just 3kg more than the outgoing five speed automatic transmission. Coupled to the new rear-wheel-drive automatic is a differential with final drive ratio of 2.65:1. The transmission efficiency and gear ratio spread enable spending more time at lower engine rpm and the use of numerically low axle ratios further improve highway fuel economy. All-wheel-drive models are equipped with a 3.07;1 final drive ratio.

Fully electronic and aided with software that provides an adaptive shifting strategy, the 845RE has been designed to provide optimal shifting characteristics consistent with the Chrysler and Dodge brands. Adaptive shifting takes into account a number of variables including engine torque gradients, kick down, longitudinal and lateral acceleration, hill detection, friction detection and downshift detection in determining shift patterns. Additional parameters include vehicle speed control, electronic stability control activation and high temperatures that can affect transmission shifting.

The addition of more gear ratios in the transmission helps reduce the gaps normally associated with upshifting and downshifting. Both vehicles benefit from nearly imperceptible gear changes due in part to very evenly spaced gear steps between each gear ratio. The gear steps also are very small providing quicker acceleration and smoother shifts.

High efforts in shifting also have been eliminated with gear selection controlled by a shift-by-wire system. The position selected by the driver (P, R, N, D) is transmitted electronically with no mechanical linkage from the shifter to the outside of the transmission. Elimination of this linkage removes any shift effort from the driver’s gear selection. Shift-by-wire also allows improved calibration and smoothness of garage and parking lot shifts.

All shifts, whether single, double or multiple are performed as a direct result of the pedal position. Downshifts are made with very short response times and lead directly to the requested gear. Multiple upshifts can be decoupled temporarily if the torque request changes during the upshift. This helps eliminate the shift searching of the transmission.

During more spirited driving conditions, sporty, quick shifts are possible as a result of multiple parameters either through a Sport shift mode that requires simple driver input. At the rear of the shifter is a gate that allows for down- and up-shifting by the driver. Once the vehicle is in the Sport mode, the driver can use either the console-mounted shifter or a pair of paddle controls located on the steering wheel.

Once the Sport mode is selected, shift times are quicker and engine rpm is allowed to increase for a more performance- oriented acceleration and higher shift dynamics. Acceleration times for the Dodge Charger and Chrysler 300 for 0-to-60 mph are 7.2 seconds.

Internally, the 845RE transmission features four gear sets and five shift elements (multi-disc clutches and brakes) inside the transmission. With fewer open shift elements, drag losses due to multiple parts rotating relative to one another, are reduced. Additionally, lower viscosity transmission fluid is used resulting in improved transmission efficiency and fuel economy improvements especially during cold environments or vehicle start-up. The 845RE also is “fill for life” not requiring oil changes during normal driving conditions.

The all-new automatic transmission will initially be purchased through ZF. Production by Chrysler at its Kokomo transmission facility under license by the German-based company is slated following introduction.

ItaliaspeedTV: ZF 8HP70 8-Speed Automatic Transmission
