 TECHNICAL DATA


Engine - Specifications 2.2 JTS

No. cylinders, arrangement Twin shaft, 4 in line, front transverse
Bore x stroke (mm) 86.0 x 94.6
Capacity (cc) 2198
Compression ratio 11.3: 1
Max EEC power kW (bhp) 136 (185) at rpm 6500
Maximum torque EEC Nm (kgm) 230 (23.4) at rpm 4500
Timing (drive) 2 OHC (chain), 4 valves per cylinder, continuous dual variable valve timing - hydraulic
Fuel system MED 7.6.1 direct electronic injection, integral with the ignition
Emission control EU4
CO2 emissions (g/km) 221

Electrical equipment (12v)
Battery: capacity (Ah) 90
Generator (A) 120

Transmission
Drive front
Gearbox: 1st 3.818 : 1
Gearbox: 2nd 2.353 : 1
Gearbox: 3rd 1.571 : 1
Gearbox: 4th 1.146 : 1
Gearbox: 5th 0.943 : 1
Gearbox: 6th 0.861 : 1
Gearbox: Reverse 3.545 : 1
Final drive ratio 4.176 : 1

Wheels
Tyres 215/55 R16 - 225/50R17 - 235/45R18

Steering
Steering box rack and pinion with hydraulic power steering
Turning circle (m) 10.7

Suspension
Front independent, double wishbone with double swinging arm and antiroll bar jointed on spherical couplings
Rear independent, Multilink system

Brakes D (disc)
Front: dia. (mm) D 305 x 28 ventilated, 60 mm floating calliper
Rear: dia. (mm) D 278 x 12 full, floating calliper, combined, 38 mm

Body – Dimensions
No. seats/no. doors 2+2/3
Length/width (mm) 4413 / 1830
Unladen height (mm) 1372
Wheelbase (mm) 2525
Front/rear track when unladen (mm) 1593 / 1573 (1579 / 1559 with 17" tyres)
VDA luggage capacity (dm3) 300/610 (236/546 with bose system +20 l cargo box)

Capacities – Weights
Fuel tank (l) 70
DIN kerb weight (kg) 1470

Performance – Fuel consumption
Speed at 1000 rpm in 5th (km/h) 31.2 (with 225/55R16 tyres)
Top speed (km/h)* 222
Acceleration (sec) (1 person + 30kg):  0 ÷ 100 km/h 8.6
Fuel consumption according to Directive EC1999/100 (l/100 km): urban cycle / extraurban cycle / combined cycle 13.0 / 7.3 / 9.4
* on track

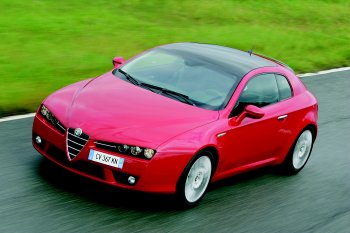

Alfa Romeo Brera

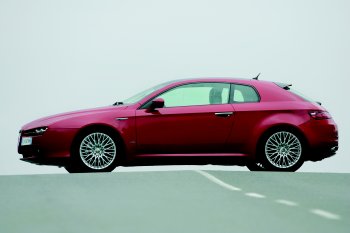

Alfa Romeo Brera

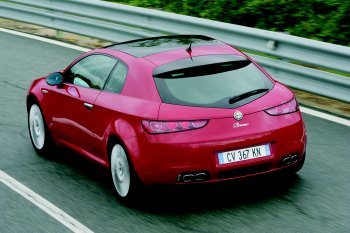

Alfa Romeo Brera

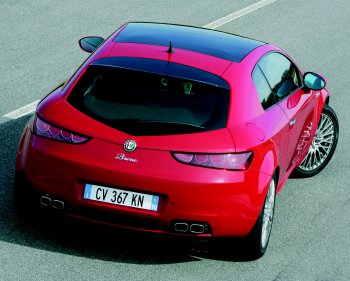

Alfa Romeo Brera

Engine - Specifications 3.2 V6 CM


No. cylinders, arrangement 2 counter-rotating shafts 6 in 60° V, front transverse
Bore x stroke (mm) 85.6 x 89
Capacity (cc) 3195
Compression ratio 11.25 : 1
Max EEC power kW (bhp) 191 (260) at rpm 6200
Maximum torque EEC Nm (kgm) 322 (32.8) at rpm 4500
Timing (drive) 4 OHC (chain), 4 electrohydraulic continuous variable valve timing systems
Fuel system MED 7.6.2 direct electronic injection, integral with the ignition
Emission control EU4
CO2 emissions (g/km) 273

Electrical equipment (12v)
Battery: capacity (Ah) 90
Generator (A) 150

Transmission
Drive four wheel
Gearbox: 1st 3.917 : 1
Gearbox: 2nd 2.040 : 1
Gearbox: 3rd 1.365 : 1
Gearbox: 4th 1.048 : 1
Gearbox: 5th 0.846 : 1
Gearbox: 6th 0.745 : 1
Gearbox: Reverse 3.769 : 1
Final drive ratio 3.895 : 1

Wheels
Tyres 225/50R17 - 235/45R18

Steering
Steering box rack and pinion with hydraulic power steering
Turning circle (m) 10.7

Suspension
Front independent, double wishbone with double swinging arm and antiroll bar jointed on spherical couplings
Rear independent, Multilink system

Brakes D (disc)
Front: dia. (mm) D 330 x 28 ventilated, radial fixed calliper in aluminium with 4 42 mm pistons
Rear: dia. (mm) D 292 x 22 ventilated, floating calliper, combined, 42 mm

Body – Dimensions
No. seats/no. doors 2+2/3
Length/width (mm) 4413 / 1830
Unladen height (mm) 1372
Wheelbase (mm) 2525
Front/rear track when unladen (mm) 1579 / 1559 with 17" tyres
VDA luggage capacity (dm3) 300/610 (236/546 with Bose system +20 l cargo box)

Capacities – Weights
Fuel tank (l) 70
DIN kerb weight (kg) 1630

Performance – Fuel consumption
Speed at 1000 rpm in 5th (km/h) 41.9 (with 225/50R17 tyres)
Top speed (km/h)* 240
Acceleration (sec) (1 person + 30kg): 0 - 100 km/h 6.8
Fuel consumption according to Directive EC1999/100 (l/100 km): urban cycle / extraurban cycle / 16.9 / 8.4 / 11.5 combined cycle
* on track
