TECHNICAL SPECIFICATIONS


Engine 1.6 16v DYNAMIC - EMOTION

No. cylinders, arrangement - 4, in line, front, transverse
Bore x stroke (mm) 78 x 83 mm
Capacity (cc) 1586
Emission level Euro 4
Compression ratio 10,5:1
Max EC power: kW (bhp) 79 (107) at rpm 5600
Max EC torque: Nm (kgm) 145 (14.8) at rpm 4000
Timing (drive) 1OHC toothed belt
Fuel Unleaded fuel (95 RON)
Fuel system direct injection
Ignition Electronic

DRIVE
Drive 4x4 with electronically-controlled self-locking differential
Clutch dry single-plate, with cup engagement spring, hydraulic control
Gearbox: no. gears 5 + reverse

STEERING
Type rack and pinion steering
Turning circle (between pavements) 11

BRAKING SYSTEM-D (disc) – T (drum)
Type Hydraulic system, front disc brakes and rear drum brakes
Front: ∅ mm D (280)
Rear: ∅ mm T (220)
Brake servo: ∅ 10”

SUSPENSION
Front MacPherson, independent
Rear curved torsion bar

WHEELS
Tyres 205/60 R 16

ELECTRICAL EQUIPMENT (12v)
Battery capacity (Ah) 36

CAPACITIES
Fuel tank capacity (litres) 50

PERFORMANCE – FUEL CONSUMPTION
Top speed (km/h) 170
Fuel consumption (EC Directive 99/100)
urban cycle (l/100 km) 8,9
extra-urban cycle (l/100 km) 6,1
combined (l/100 km) 7,1
Exhaust emissions CO2 (g / km) 173

DIMENSIONS
Wheelbase (mm) 2500
Length (mm) 4115
Width (mm) 1755
Max unladen height (mm) 1620
Front track (mm) 1495
Rear track (mm) 1495
Front overhang 895
Rear overhang 720

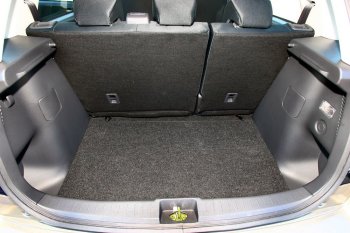

Luggage compartment capacity (dm3) 270/670
Incidence angle (standard A) 20.3°
Exit angle (standard A) 31.1°
Slope angle (standard A) 18.1°
Minimum ground clearance (standard A) (mm) 190
Climbable gradient 33%

WEIGHTS

Vehicle kerb weight with tanks and reservoirs full, spare wheel, tools and accessories (kg) 1250


Engine 1.9 Multijet 8v DYNAMIC – EMOTION

No. cylinders, arrangement 4- , in line, front, transverse
Bore x stroke (mm) 82 x 90.4 mm
Capacity (cc) 1910
Emission level Euro 4 with particulate filter
Compression ratio 18,0:1
Max EC power: kW (bhp) 88 (120) at rpm 4000
Max EC torque: Nm (kgm) 280 (28,6) at rpm 2050
Timing (drive) 1 OHC (toothed belt)
Fuel Diesel
Fuel system Common Rail Multijet electronic direct injection with turbocharger and intercooler
Ignition by compression

DRIVE
Drive 4x4 with electronically-controlled self-locking differential
Clutch dry single-plate, with cup engagement spring, hydraulic control
Gearbox: no. gears 6 + reverse

STEERING
Type rack and pinion steering
Turning circle (between pavements) 11

BRAKING SYSTEM-D (disc) – T (drum)
Type Hydraulic system, front disc brakes and rear drum brakes
Front: ∅ mm D (280)
Rear: ∅ mm T (220)
Brake servo: ∅ 10”

SUSPENSION
Front MacPherson, independent
Rear curved torsion bar

WHEELS
Tyres 205/60 R 16

ELECTRICAL EQUIPMENT (12v)
Battery capacity (Ah) 60

CAPACITIES
Fuel tank capacity (litres) 50

PERFORMANCE – FUEL CONSUMPTION
Top speed (km/h) 180
Fuel consumption (EC Directive 99/100)
urban cycle (l/100 km) *
extra-urban cycle (l/100 km) *
combined (l/100 km) *
Exhaust emissions CO2 (g / km)

DIMENSIONS
Wheelbase (mm) 2500
Length (mm) 4115
Width (mm) 1755
Max unladen height (mm) 1620
Front track (mm) 1495
Rear track (mm) 1495
Front overhang 895
Rear overhang 720
Luggage compartment capacity (dm3) 270/670
Incidence angle (standard A) 20.3°
Exit angle (standard A) 31.1°
Slope angle (standard A) 18.1°
Minimum ground clearance (standard A) (mm) 190
Climbable gradient 33%

WEIGHTS
Vehicle kerb weight with tanks and reservoirs full, spare wheel, tools and accessories (kg) 1350

* Values available at launch
