TECHNICAL SPECIFICATION



Alfa Spider 2.2 JTS

No. cylinders, arrangement: Twin shaft, 4 in line, front transverse
Bore x stroke (mm) 86.0 x 94.6
Capacity (cc) 2198
Compression ratio 11.3: 1
Max EEC power kW (bhp) 136 (185) at rpm 6500
Maximum torque EEC Nm (kgm) 230 (23.4) at rpm 4500
Timing (drive) 2 OHC (chain), 4 valves per cylinder, continuous dual variable valve timing - hydraulic
Fuel system MED 7.6.1 direct electronic injection, integral with the ignition
Emission control EU4
CO2 emissions (g/km) 221
Electrical equipment (12v)
Battery: capacity (Ah) 90
Generator (A) 120
Transmission
Drive: front
Gearbox: 1st 3.818 : 1; Gearbox: 2nd 2.353 : 1; Gearbox: 3rd 1.571 : 1; Gearbox: 4th 1.146 : 1; Gearbox: 5th 0.943 : 1; Gearbox: 6th 0.861 : 1; Gearbox: Reverse 3.545 : 1; Final drive ratio 4.176 : 1
Wheels
Tyres 215/55 R16 - 225/50R17 - 235/45R18
Steering
Steering box rack and pinion with hydraulic power steering
Turning circle (m) 10.7
Suspension
Front independent, double wishbone with double swinging arm and antiroll bar jointed on spherical couplings
Rear independent, Multilink system
Brakes D (disc)
Front: dia. (mm) D 305 x 28 ventilated, 60 mm floating calliper
Rear: dia. (mm) D 278 x 12 full, floating calliper, combined, 38 mm
Body Dimensions
No. seats/no. doors 2/2
Length/width (mm) 4393 / 1830
Unladen height (mm) 1318
Wheelbase (mm) 2528
Front/rear track when unladen (mm) 1579 / 1559 (1593/1575 max)
VDA luggage capacity (dm3) 253 (200 with spare wheel)
Capacities Weights
Fuel tank (l) 70
DIN kerb weight (kg) 1530
Performance Fuel consumption
Top speed (km/h)* 217
Acceleration (sec) (1 person + 30
kg): - 0 - 100 km/h 8.8
Fuel consumption according to Directive EC1999/100 (l/100 km): urban cycle / extraurban cycle / combined cycle - 13.0 / 7.3 / 9.4

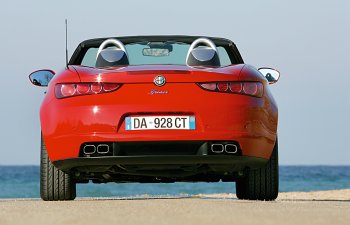

ALFA ROMEO SPIDER

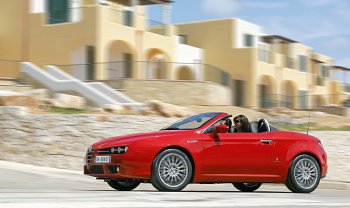

ALFA ROMEO SPIDER

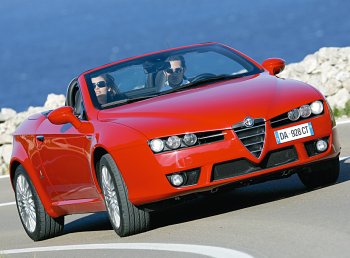

ALFA ROMEO SPIDER

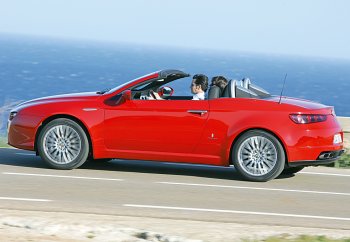

ALFA ROMEO SPIDER


Alfa Spider 3.2 V6 Q4

No. cylinders, arrangement: 6 in 60 V, front transverse
Bore x stroke (mm) 89 x 85.6
Capacity (cc) 3195
Compression ratio 11.25 : 1
Max EEC power kW (bhp) 191 (260) at rpm 6200
Maximum torque EEC Nm (kgm) 322 (32.8) at rpm 4500
Timing (drive) 4 OHC (chain), 4 electrohydraulic continuous variable valve timing systems
Fuel system MED 7.6.2 direct electronic injection, integral with the ignition
Emission control EU4
CO2 emissions (g/km) 273
Electrical equipment (12v)
Battery: capacity (Ah) 90
Generator (A) 150
Transmission
Drive: four wheel
Gearbox: 1st 3.917 : 1; Gearbox: 2nd 2.040 : 1; Gearbox: 3rd 1.365 : 1; Gearbox: 4th 1.048 : 1; Gearbox: 5th 0.846 : 1; Gearbox: 6th 0.745 : 1; Gearbox: Reverse 3.769 : 1; Final drive ratio 3.895 : 1
Wheels
Tyres 225/50R17 - 235/45R18
Steering
Steering box rack and pinion with hydraulic power steering
Turning circle (m) 10.7
Suspension
Front independent, double wishbone with double swinging arm and antiroll bar jointed on spherical couplings
Rear independent, Multilink system
Brakes D (disc)
Front: dia. (mm) D 330 x 28 ventilated, radial fixed calliper in aluminium with 4 42mm pistons
Rear: dia. (mm) D 292 x 22 ventilated, floating calliper, combined, 42 mm
Body Dimensions
No. seats/no. doors 2/2
Length/width (mm) 4393 / 1830
Unladen height (mm) 1318
Wheelbase (mm) 2528
Front/rear track when unladen (mm) 1579 / 1559 (1593 max / 1575 max)
VDA luggage capacity (dm3) 235 (200 with spare wheel)
Capacities Weights
Fuel tank (l) 70
DIN kerb weight (kg) 1690
Performance Fuel consumption
Top speed (km/h)* 235
Acceleration (sec) (1 person + 30
kg): - 0 - 100 km/h 7
Fuel consumption according to Directive EC1999/100 (l/100 km): urban cycle / extraurban cycle / combined cycle - 16.9 / 8.4 / 11.5
