SPORTWAGON Q4

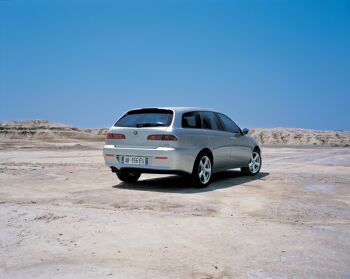

Alfa Romeo Sportwagon Q4: Click to enlargeThe sportier Alfa Sportwagon Q4 is outstanding for its safe performance under all road conditions and also offers even better pick-up and top speed than the Alfa Crosswagon Q4.

A car for drivers who want the very best driving satisfaction in total safety, and want it to be known without ostentation.

This description encapsulates the spirit of the Alfa Sportwagon Q4 and explains why it was decided not to try and improve on the much-loved shape of the basic model.

The new version does not display the features of the Crosswagon Q4 but limits the exterior changes to a few tweaks that strengthen the model's sporty looks: including a special exhaust tailpipe and 17" x 7 alloy wheels. The red 205/50 R17 Pirelli Pzero low profile tyres assure very sporty qualities and excellent roadholding.

The car is therefore still recognisable from the outside. The new Alfa Sportwagon Q4 transmission features 4 permanently engaged drive wheels, three differentials and torque distribution preferentially to the rear. In any case, the Q4 name leaves you in no doubt: due to its Torsen C central differential, this particular Sportwagon is specifically designed for a satisfying drive in complete safety.

The Alfa Sportwagon Q4 is altogether the ideal car for people who are less interested in the looks of an out-and-out off-roader and more interested in the safety and driving satisfaction of a true sports version. They are offered maximum driver and passenger protection through the application of the most sophisticated devices currently on the market plus a more powerful braking system. The Sportwagon Q4 offers all this plus, for active safety, a VDC, for full control of dynamic stability under all conditions and an ASR (Anti Slip Regulation) that optimises traction at any speed with the aid of the brakes and engine control. These systems are never invasive, because the driver is free to enjoy his or her individual driving style while also ensuring outstanding safety during car dynamic control.

A tried and tested power unit has also been chosen for the Alfa Crosswagon Q4: the spirited 1.9 M-Jet combined with a six-speed manual gearbox of sporty configuration. The engine develops a power output of 150 bhp at 4000 rpm with a maximum torque of 305 Nm (31 kgm) at 2000 rpm. Everything you need for a thrilling performance: top speed is 200 km/h and acceleration from 0 to 100 km/h takes place in 10.2 seconds.

The designers who developed the Alfa Sportwagon Q4 took as their starting point the great sporting temperament of the 156 model and then added the extraordinary attributes of the Torsen C four wheel drive system, active and passive safety equipment and a sporty suspension layout.

The suspension layout on the Alfa Sportwagon Q4 consists of a formidable high double wishbone set-up at the front and a MacPherson with transverse rods of different length at the rear. This technical choice, already so successful on the Alfa 156 and 147, has been adapted to the different features of the new car to assure the Alfa Sportwagon Q4 outstanding dynamic performance combined with superlative comfort. This has been achieved, above all, by special settings designed to improve handling: for the customer, this means the traction effect is similar to that of a rear wheel drive but the car benefits from the stability of its permanently engaged Alfa Romeo four wheel drive.

The suspension is the outcome of a long and thorough process of refining carried out on the basic layout to achieve the highest level of handling and agility. The revised system assures the car the best dynamic performance to help the driver master this spirited sports performer. In detail, the following items have been changed in relation to the 4x2 and Crosswagon Q4 models: suspension geometry, antiroll bar, spring setting (now stiffer), shock absorbers (handling) and the front and the rear suspension blocks.

The final result is a car for everyday use that could, under the right circumstances, ensure customers the performance, behaviour and driving sensations of a car built for the race track. Alfa Romeo is world-renowned for its ability to produce good-looking, sporty cars that combine a glittering racing pedigree with the cream of contemporary engineering. Cars that enhance everyday driving experiences with a true racing feel and authentic driving satisfaction.

The Alfa Sportwagon Q4 offers all this and more: more performance, more handling, better braking capacity. Despite its pronounced sporty personality, the Alfa Sportwagon Q4 is quite at home on cobbled city centre streets and ultra-stable during high speed motorway trips and rapid lane changes. The thoroughbred racing Alfa, on the other hand, will give you the sort of sensations you could only expect from a true sports car on mixed routes or the track, where speed and transverse acceleration are much more controllable. The Alfa Sportwagon Q4 is made up of two specifications: Progression and Distinctive.

Main product features (Italian market)



Progression

Distinctive

2-speed windscreen wiper + 4 intermittent settings + smart washer S S
Rear wiper with intermittent setting S S
Door and boot remote control S S
Electric, heated door mirrors S S
17" alloy wheels with All Season 205/50 tyres S S
Metallic paint O O
Iridescent paint O O
Parking sensor O O
Electric sunroof with two opening modes O O
Carrier bars O O
Glove compartment light S S

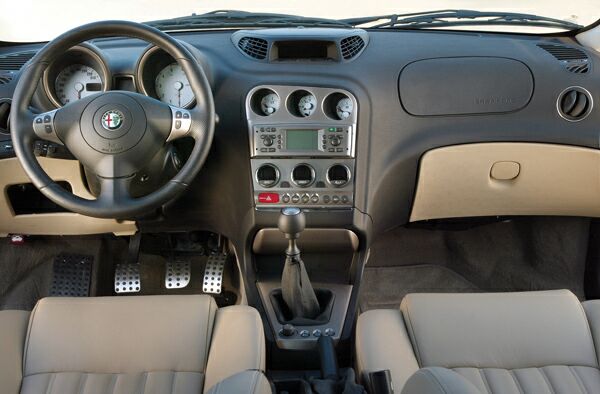

Special Q4 instrument panel S S
Front armrest with container S S
Rear armrest with ski tunnel S S
Illuminated courtesy mirrors S S
Electrically-operated front windows S S
Electrically-operated rear windows S S
Dual zone automatic air conditioner S S
Six-speed gearbox S S
Leather steering wheel + gear lever knob S S
Pouches on back of front seat backrests S S
Fold-down rear seat with 60/40 split S S
Alfatex seats S O-
Leather seats O S
Electric controls on the steering wheel O S
Cruise Control O S
Isofix child seat O O
Wooden steering wheel + gear lever knob O O
3rd rear central head-restraint O O
Misting sensors, rain sensor and odour sensor O O
Retaining net from floor to ceiling O O
Object retaining nets + 12V power point in boot O O
Sports seats O O
Heated seats with lumbar adjustment (driver) O O
ABS with EBD S S
VDC with ASR S S
Front seat-belts with pretensioner S S
Rear seat-belts and 3 reels S S
Isofix child seat fastenings S S
Fire Prevention System S S
Headlight alignment corrector S S
Alfa Code S S
Driver and passenger side airbags S S
Window-bags S S
Sidebags S S
Tyre kit (tyre inflation) S S
Luggage retaining hooks S S
Foglight S S
Headlight washers O O
Volume-sensing car alarm O O
Gas discharge headlights (xenon) O O
Infocenter with outdoor temperature, Trip Computer and check control S S
Blaupunkt RDS ratio with CD, 6 speakers S S
GSM phone with radio and provision for Connect services O O
Navigation system with radio O O
Blaupunkt RDS radio with CD and MP3, 6 speakers O O
Bluetooth handsfree phone O O
CD-Changer in boot O O
Bose Hi-Fi with amplifier and subwoofer O O
Provision for radio phone O O
Navigation system with GSM phone, radio and provision for Connect services O O

O = option S = standard - = not available

Alfa Romeo Sportwagon Q4

Colours

  Alfatex as standard on Progression Leather as standard on Distinctive, an option on Progression Sports seat, an option on Progression and Distinctive
  Black Beige Grey Grey Red Black Blue Grey Grey Beige Sports seat
Instrument background Black Grey Grey Grey Black Black Black Grey Grey Grey Black
Facia colour Water buffalo Single colour black Two-tone black / beige Two-tone black / grey Tone on tone grey Single colour black Single colour black Single colour black Two-tone black / grey Tone on tone grey Two-tone black / beige Single colour black
Alfa Red l l l l - l - l l m l
Carrara White l - - - l l m - - l l
Kyalami Black l l l l l l - l l l l
Siena Red l l l l - l - l l m l
Brookland Green m l - - - l - - - l l
Light of Amalfi Grey l l - - - l - - - l l
Moonlight Blue l l l l m l l l l l l
Capri Blue l l l l m l l l l l l
Daytona Blue l m - l l l - - - l l
Le Castellet Blue l m - - m l l - - m l
Gonzaga Grey l l l l l l m l l l l
Stromboli Grey l l l l l l m l l l l
Lipari Grey l l l l l m - l l l m
Jarama Black l l l l l m - l l l m
Nuvola Blue l m m m m l l m m l l
Nuvola White l m l l m l m l l m l

- = Match not available, l = Recommended match, m = Available match

Alfa Romeo Sportwagon Q4

Technical data

Engine specifications 1.9 JTD 16v M-JET
No. cylinders, arrangement 4 in line, front transverse
Capacity (cc) 1910
Max. EC power output kW (bhp) 110 (150)
at rpm 4000
Peak torque EC Nm (kgm) 305 (31)
at rpm 2000
Fuel system Multijet direct injection with variable geometry turbocharger and intercooler Bosch EDC16 electronic engine control system

Transmission permanent, with 3 differentials
Drive Torsen C self-locking central differential with 4 locking levels, integral with ASR and VDC Nominal front/rear distribution: 42/58

Wheels
Tyres 205/50 R17

Steering
Steering box rack and pinion with power steering
Turning circle (m) 11

Suspension
Front independent, with double wishbones and stabiliser bar jointed on rods with ball-joints. New cast aluminium beam
Rear independent, advanced MacPherson layout with transverse levers of different length connected to a tubular steel beam, longitudinal rods with hydraulic bush, offset coil springs and jointed anti-roll bar with ball joints

Brakes D (disc)
Front: dia. (mm) D 330 x 32 (ventilated) with aluminium callipers with 4 pistons
Rear: dia. (mm) D 276 x 10

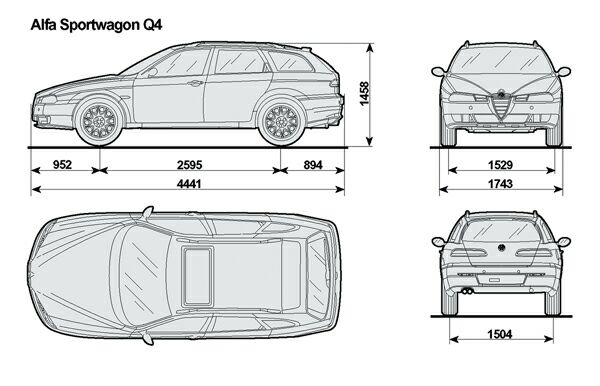

Body - Dimensions
No. seats / no. doors 5 / 5
Length / width (mm) 4441 / 1743
Unladen height (mm) 1458
Wheelbase (mm) 2595
Front / rear track, unladen (mm) 1519 / 1487
VDA luggage capacity (dm3) 360 / 1180

Capacities - Weights
Fuel tank (l) 50
DIN kerb weight (kg) 1510
Max. towable weight (kg) 1450

Performance
Top speed (km/h) 200
Acceleration (sec) (1 person + 30 kg): - 0 - 100 km/h 10.2

Fuel consumption
Fuel consumption as per EC Directive 1999/100 (l/100 km):
urban cycle
extraurban cycle
combined
8.9
5.6
6.8

1.9 JTD 16v M-JET, Peak torque: 305 Nm at 2000 rpm, Max. power output: 110 kW at 4000 rpm
