14th February 2002

new models: Ferrari 575M


February 2002 sees the unveiling of the facelifted F550.

Ferrari 575M Ferrari 575M Ferrari 575M

The 575M, is the mid-life facelift of the 550 Maranello which made its debut in 1996. The key elements of the new 575M  can be neatly summed up in the model name. In fact, the engine is described by the new numerical code, 575, as this is an abbreviated indication of its capacity, increased from 5500 to 5750 cc, resulting in an increase in both power and torque. The letter M, an abbreviation of "modified," underlines the fact that changes have been wrought to all areas of the model’s performance. Key amongst these, apart from the engine is the introduction of an F1 type gearbox, first time on a 12 cylinder Ferrari road car.


styling
chassis & adaptive set-up
powertrain
transmission & F1 gearbox
interior

styling:

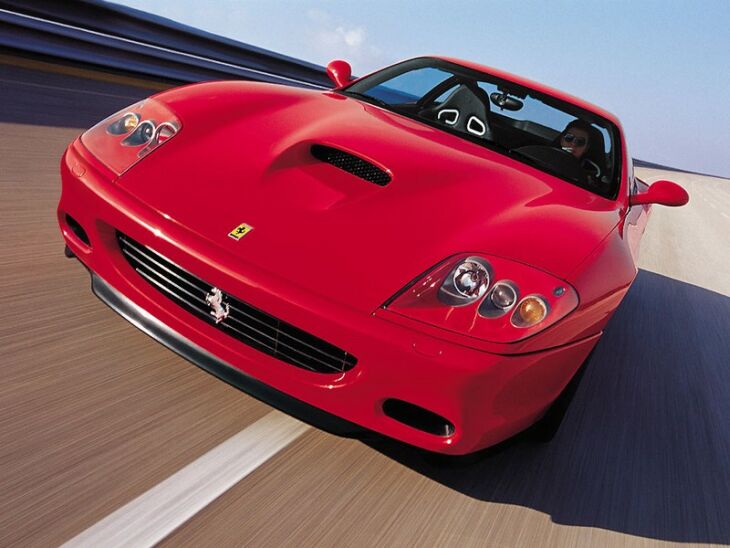

When it came to looking at the style of the vehicle, the thinking behind it is to retain the balance and sober looks, which invested it with the status of an instant classic, fitting in perfectly with Ferrari’s return to a front engine high performance car. Modifications were limited to those required to deal with the technical changes: different shape and size for the air intakes in the new front end of the car, with refinement of the aerodynamic and fluid-dynamic efficiency and a new treatment for the front spoiler. Finally, the light clusters have been redesigned to produce a new aesthetic, with colour-coded headlamp bodies and grey surround, combined with xenon technology for the dipped beam, with headlamp washers. The wheels are also a new design. On the aerodynamic front, the final iteration brings improved airflow around the wheels and there are small elements which reduce drag, while every detail of the floor has been designed to generate downforce while reducing drag.

Ferrari 575M

chassis and adaptive set-up:
One of the factors which has the biggest impact on the car’s road-holding is the new adaptive set-up, based on a system of independently controlled damping at all four corners of the car. The system selects the ideal ride height for any condition, with two choices: Sport, which is selected for a more sporty ride, improving traction: Comfort, which gives a more comfortable ride, absorbing road bumps. The braking has also been modified to cope with the increased performance of the vehicle, especially in terms of avoiding fade and improving response under braking. Changes have centred on improving cooling for the brakes with new pad material (Ferodo HP1000;) reduction in brake pedal effort and an increase in the level of assistance from the servo system, and the ABS/ASR system has been uprated from 5.0 to 5.3. As with the rest of the Ferrari range, the electronic traction control can be set between normal and Sport. The unsprung weight has been optimised in the following way: the ABS/ASR sensors are integrated into the wheel bearings and the weight of the tyres and rims has been reduced. These changes have seen the weight of the complete front wheel come down by 1.8 kg and that of the rear by 1.2 kg. The tyres have also evolved and now produce less rolling noise, are longer lasting and perform better in aquaplaning situations. Furthermore, a new tyre, available as an option, has now been produced in a 19 inch size, which is suitable for more extreme performance with improved lateral and longitudinal grip. The 575M is also fitted with tyre pressure sensors, which mean that tyre pressures can be checked while the car is on the move.

Ferrari 575M

engine:
The 12 cylinder engine in the 575M, maintains the 65 degree V angle, four overhead camshafts, four valves per cylinder, the light alloy block, heads and oil tank and the dry sump lubrication system, with two scavenge pumps and one sender pump, separate reservoir and individual radiators. The objectives fixed for the new V12 engine in the 575M Maranello were to increase both the power curve as well as the torque. It now has a maximum power output of 515 CV (379 Kw) at 7250 rpm and maximum torque of 60 Kgm at 5250 rpm (588.6 Nm,) with an increase in mid-range torque of 1.5 Kgm between 1000 and 4000 rpm, when compared to the previous engine fitted to the 550 Maranello. These increases in performance across the board have been achieved through a variety of modifications applied to the 12 cylinder. In particular these are an increase in capacity, a higher compression ratio, new fluid dynamics for the intakes and more general changes aimed at improving the efficiency and the management system of the power unit.

Ferrari 575M

transmission & F1 gearbox
The optimum weight distribution, with a 50-50 split between the axles, with the driver on-board, has been achieved thanks to a transaxle design which features a combined rear mounted gearbox and differential unit with conical torque and autolocking differential in the same unit. The transmission on the new 575M Maranello is also fitted with the electro-hydraulic "F1" control unit mounted at the rear of the car, in order to minimise response time and to ensure a favourable operating temperature. The F1 gearchange on the 575M has been refined in order to produce maximum efficiency from the use of the manual levers mounted on the back of the steering wheel, as this gives the best response for sports driving. The driver has two main ways of changing gear manually via the console-mounted controls: a more sporty change (Sport) or one aimed at a more relaxed driving style. Both are linked to an analogue control of the suspension damping. The principal benefits of the F1 change on the 575M are a quicker gear change coupled with the control of the damping when gears are selected. Along with the manual F1 change, which Ferrari has produced as the primary use of the electro-actuated transmission, there are two further options which can be selected: automatic and low grip.

interior:

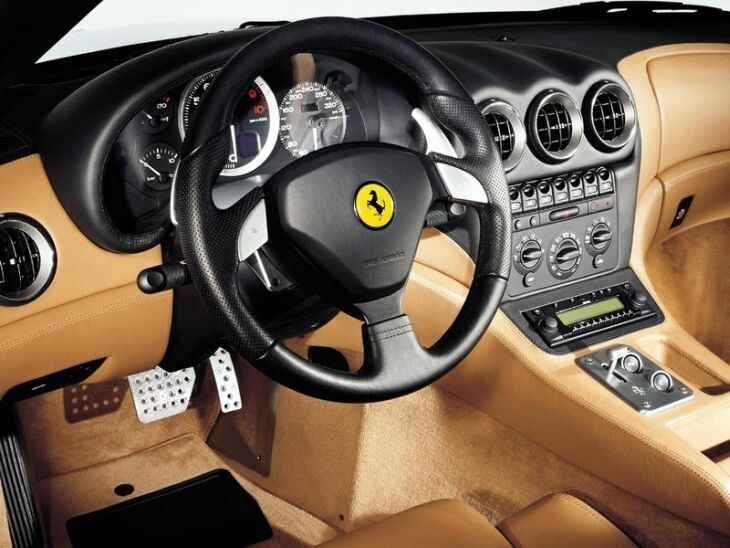

The interior of the 575M has been extensively revised, in order to make it more sporty and functional. In keeping with the car’s increased performance, the aim has been to improve the efficiency of how the driver controls the car. All the dials have been grouped together in one single pod ahead of the driver, with the rev counter in the centre. The seats are new, with six electronic adjustments and driver position memory. The dashboard and centre tunnel have also been redesigned. Also new are the steering wheel, the door trims and the style of the interior components. The 575M can also be specified to the customer’s requirements by Carrozzeria Scaglietti, which allows customers to chose their own styling, equipment and alter the functionality of the vehicle to suit their personal taste, with racing and track options, exterior changes and colours, the treatment of the interior and choice of materials and equipment.

Ferrari 575M

Ferrari 575M
Ferrari 575M
Ferrari 575M
Ferrari 575M
Ferrari 575M
