TECHNICAL SPECIFICATION - DOBLÒ CARGO


ENGINE 1.4 8v

No. cylinders, arrangement 4, in line, front, transverse
Capacity (cc) 1368
Emission level Euro 4
Compression ratio 11.1:1
Max EC power: kW (bhp)
at rpm 57 (77) 6000 Max EC power: Nm (kgm)
RPM 115 (11.7) 3000 Timing (drive) 1 OHC (toothed belt) with hydraulic tappets
Fuel Unleaded fuel (95 RON)
Fuel system Electronic MPI with phased sequential injection, returnless system
Ignition static electronic integral with injection

TRANSMISSION
Drive front
Clutch single dry plate with cup engagement spring, hydraulic control
Gearbox: no. gears 5 + reverse

STEERING
Type rack and pinion with power steering
Turning circle
(between pavements) 10.5

BRAKES – D (disc) - T (drum)
Type hydraulic system with 2 independent crossover circuits; front disc
brakes; rear drum brakes
Front: dia. mm D 257 ventilated
Rear: dia. mm T 228
Brake servo: Ø 10”

SUSPENSION
Front independent MacPherson type with tie rods anchored to a subframe, telescopic hydraulic shock absorbers, coil springs and stabiliser bar
Rear rigid axle with longitudinal leaf springs

WHEELS
Tyres 185/65 R 15; 175/75 R 14*

ELECTRICAL EQUIPMENT (12v)
Battery capacity (Ah) 40
Capacities
Fuel tank capacity (litres) 60
Performance
Top speed▲ (km/h) 148
Mixed fuel consumption♦ (l/100 km) 7.4
▲ Value varies according to model and version
♦ Approximate values refer to vehicles type-approved as cars
* For Maxi or oversize payload versions

ENGINE 1.6 Natural Power

No. cylinders, arrangement 4, in line, front, transverse
Capacity (cc) 1596
Emission level Euro 4
Compression ratio 10.5:1
Max EC power: kW (bhp) 76 (103) 5750 (petrol) at rpm 68 (92) 5750 (methane)
Max EC power: Nm (kgm) 145 (14.8) 4000 (petrol) RPM 130 (13.2) 4000 (methane)
Timing (drive) 2 OHC (toothed belt)
Fuel petrol/methane
Fuel system Phased sequential electronic MPI, dual fuel system with special injectors for methane
Ignition electronic, static, integrated

TRANSMISSION
Drive front
Clutch single dry plate with cup engagement spring, hydraulic control
Gearbox: no. gears 5 + reverse

STEERING
Type rack and pinion with power steering
Turning circle
(between pavements) 10.5

BRAKES – D (disc) - T (drum)
Type hydraulic system with 2 independent crossover circuits; front disc
brakes; rear drum brakes
Front: dia. mm D 257 ventilated
Rear: dia. mm T 228
Brake servo: Ø 10”

SUSPENSION
Front independent MacPherson type with tie rods anchored to a subframe, telescopic hydraulic shock absorbers, coil springs and stabiliser bar
Rear rigid axle with longitudinal leaf springs

WHEELS
Tyres 175/70 R 14

ELECTRICAL EQUIPMENT (12v)
Battery capacity (Ah) 50
Capacities
Fuel tank capacity (litres) 30 (petrol) 26.4 m3 (18 kg) (methane)
Performance
Top speed▲ (km/h) 163 (petrol) 152 (methane)
Mixed fuel consumption♦ (l/100 km) 9.2 (petrol) 6.3 kg/100 km (methane)
▲ Value varies according to model and version
♦ Approximate values refer to vehicles type-approved as cars

ENGINE 1.3 Multijet 16v

No. cylinders, arrangement 4, in line, front, transverse
Capacity (cc) 1248
Emission level Euro 4
Compression ratio 17.6:1
Max EC power: kW (bhp) at rpm 55 (75) 4000
Max EC power: Nm (kgm) RPM 190 (19.4) 1750
Timing (drive) 2 OHC (chain) with hydraulic tappets
Fuel diesel
Fuel system Common Rail Multijet electronic direct injection with turbocharger and intercooler
Ignition by compression

TRANSMISSION
Drive front
Clutch single dry plate with cup engagement spring, hydraulic control
Gearbox: no. gears 5 + reverse

STEERING
Type rack and pinion with power steering
Turning circle
(between pavements) 10.5

BRAKES – D (disc) - T (drum)
Type hydraulic system with 2 independent crossover circuits; front disc
brakes; rear drum brakes
Front: dia. mm D 257 ventilated
Rear: dia. mm T 228
Brake servo: Ø 10”

SUSPENSION
Front independent MacPherson type with tie rods anchored to a subframe, telescopic hydraulic shock absorbers, coil springs and stabiliser bar
Rear rigid axle with longitudinal leaf springs

WHEELS
Tyres 185/65 R 15 175/75 R 14*

ELECTRICAL EQUIPMENT (12v)
Battery capacity (Ah) 50
Capacities
Fuel tank capacity (litres) 60
Performance
Top speed▲ (km/h) 146
Mixed fuel consumption♦ (l/100 km) 5.4
▲ Value varies according to model and version
♦ Approximate values refer to vehicles type-approved as cars
* For Maxi or oversize payload versions

ENGINE 1.9 Multijet 8v

No. cylinders, arrangement 4, in line, front, transverse
Capacity (cc) 1910
Emission level Euro 4
Compression ratio 18.0:1
Max EC power: kW (bhp) at rpm 77 (105) 4000
Max EC power: Nm (kgm) RPM 200 (20.4) 1750
Timing (drive) 1 OHC (toothed belt)
Fuel diesel
Fuel system Common Rail Multijet electronic direct injection with turbocharger and intercooler
Ignition by compression

TRANSMISSION
Drive front


zoom

zoom

Fiat Doblo
Fiat Doblo
zoom


Clutch single dry plate with cup engagement spring, hydraulic control
Gearbox: no. gears 5 + reverse

STEERING
Type rack and pinion with power steering
Turning circle
(between pavements) 10.5

BRAKES – D (disc) - T (drum)
Type hydraulic system with 2 independent crossover circuits; front disc
brakes; rear drum brakes
Front: dia. mm D 257 ventilated
Rear: dia. mm T 228
Brake servo: Ø 10”


SUSPENSION
Front independent MacPherson type with tie rods anchored to a subframe, telescopic hydraulic shock absorbers, coil springs and stabiliser bar
Rear rigid axle with longitudinal leaf springs

WHEELS
Tyres 185/65 R 15 175/75 R 14*

ELECTRICAL EQUIPMENT (12v)
Battery capacity (Ah) 60
Capacities
Fuel tank capacity (litres) 60
Performance
Top speed▲ (km/h) 168
Mixed fuel consumption♦ (l/100 km) 5.8
▲ Value varies according to model and version
♦ Approximate values refer to vehicles type-approved as cars
* For Maxi or oversize payload versions

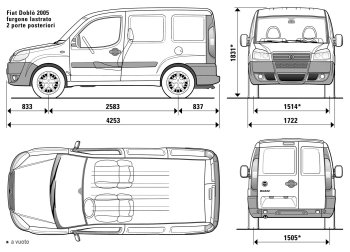

Short wheelbase vans (Panel and Semiglazed)
* Unladen

Exterior dimensions (mm)
Wheelbase 2583
Maximum length 4253
Maximum width 1722
Front track 1514
Rear track 1505
Max height (unladen) 1831
Front overhang 833
Rear overhang 837
Rear door (mm)
Width 1231
Height 1245
Exterior side door (mm)
Width 685
Height 1142
Load compartment (mm)
Length 1680
Width 1470
Width between wheelarches 1200
Height 1305
Load threshold height (unladen) 535
Load compartment capacity (m3)
Volume 3.2

Weights Standard van

Engines 1.4 8v 1.6/Natural Power/1.3 Multijet 16v/1.9
Multijet 8v

Vehicle weight (tare) (kg) 1190 1370 1270 1280
Payload including driver (kg) 730 700 730 730
GVW (kg) 1920 2070 2000 2010
Max. towable weight (kg) 1000 1000 1200 1300

Weights Oversize payload van

Engines 1.4 8v/1.3 Multijet 16v/1.9 Multijet 8v

Vehicle weight* (tare) (kg) 1190 1270 1280
Payload including driver (kg) 850 850 850
GVW (kg) 2040 2120 2130
Max. towable weight (kg) 1000 1200 1300

* in running order with full tanks, spare wheel, tools and accessories

Short wheelbase High Top vans (Panel and Semiglazed)
* Unladen

Exterior dimensions (mm)
Wheelbase 2583
Maximum length 4253
Maximum width 1722
Front track 1514
Rear track 1505
Max height (unladen) 2086
Front overhang 833
Rear overhang 837
Rear door (mm)
Width 1231
Height 1450
Exterior side door (mm)
Width 685
Height 1142
Load compartment (mm)
Length 1680
Width 1470
Width between wheelarches 1200
Height 1550
Load threshold height (unladen) 535
Load compartment capacity (m3)
Volume 3.8

Weights Standard van

Engines 1.4 8v/1.6 Natural Power/1.3 Multijet 16v/ 1.9 Multijet 8v

Vehicle weight (tare) (kg) 1210 1390 1290 1300
Payload including driver (kg) 730 700 730 730
GVW (kg) 1940 2090 2020 2030
Max. towable weight (kg) 1000 1000 1200 1300

Weights Oversize payload van

Engines 1.4 8v/1.3Multijet 16v/1.9 Multijet 8v
Vehicle weight* (tare) (kg) 1210 1290 1300
Payload including driver (kg) 850 850 850
GVW (kg) 2060 2140 2150
Max. towable weight (kg) 1000 1200 1300

* in running order with full tanks, spare wheel, tools and accessories

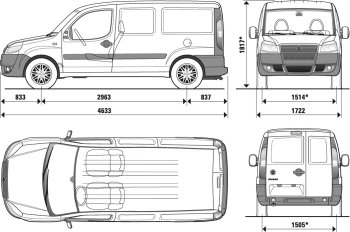

Long wheelbase vans (Maxi) (Panel and Semiglazed)
* Unladen

Exterior dimensions (mm)
Wheelbase 2963
Maximum length 4633
Maximum width 1722
Front track 1514
Rear track 1505
Max height (unladen) 1817
Front overhang 833
Rear overhang 837
Rear door (mm)
Width 1231
Height 1245
Exterior side door (mm)
Width 685
Height 1142
Load compartment (mm)
Length 2060
Width 1470
Width between wheelarches 1200
Height 1305
Load threshold height (unladen) 535
Load compartment capacity (m3)
Volume 4.0

Weights

Engines 1.4 8v/1.3 Multijet 16v/1.9 Multijet 8v
Vehicle weight* (tare) (kg) 1240 1320 1330
Payload including driver (kg) 850 850 850
GVW (kg) 2090 2170 2180
Max. towable weight (kg) 1000 1200 1300

* in running order with full tanks, spare wheel, tools and accessories

Combi 5 seater Cat. N1.
* Unladen

Exterior dimensions (mm)
Wheelbase 2583
Maximum length 4253
Maximum width 1722
Front track 1514
Rear track 1505
Max height (unladen) 1818
Front overhang 833
Rear overhang 837
Rear door (mm)
Width 1231
Height 1245
Exterior side door (mm)
Width 685
Height 1142

Weights

Engines 1.4 8v/1.3 Multijet 16v 1.9 Multijet 8v

Vehicle weight* (tare) (kg) 1240 1320 1330
Payload including driver (kg) 680 (5 people +305)
680 (5 people +305) 680 (5 people +305)

GVW (kg) 1920 2000 2010
Max. towable weight (kg) 1000 1200 1300

* in running order with full tanks, spare wheel, tools and accessories
