FIAT GRANDE PUNTO - TECHNICAL SPECIFICATIONS (PETROL & DIESEL)


ACTIVE - DYNAMIC ENGINE 1.2 - 8V – 65 bhp

No. of cylinders, arrangement 4, in line, front transverse No. of valves 2 Bore x stroke (mm) 70.8 x 78.9 Capacity (cc) 1242 Environmental compatibility EURO 4 Emissions control EOBD Compression ratio 11:1 Max. power output: bhp-EC (kW-EC) 65 (48) at rpm 5500 Peak torque: kgm-EC (Nm-EC) 10.4 (102) at rpm 3000 Timing (control) 1 OHC with mechanical tappets Fuel feed MPI electronic sequential phased Ignition Static with digital electronic control TRANSMISSION Drive front Clutch control hydraulic Gearbox, no. of speeds 5 Ratios: 1st 3.909 : 1 2nd 2.158 : 1 3rd 1.480 : 1 4th 1.121 : 1 5th 0.921 : 1 6th / Reverse 3.818 : 1 Gearbox family C514 Final drive 4.071 STEERING Type rack and pinion with electric drive Turning circle (m) 10 BRAKES - D (disc) - T (drum) Front: (mm) D257 x 22 (ventilated) Rear: (mm) T203 SUSPENSION Front independent MacPherson, telescopic dampers, anti-roll bar with spherical joint links Rear torsion axle and crossbeam. Telescopic hydraulic dampers MEASUREMENTS Wheelbase (mm) 2510 Front/rear track* (mm) front 1473 - rear 1466 Length/Width/Height* (m) 4030 / 1687 / 1490 Luggage compartment VDA (dm3) 275 WHEELS Tyres 175/65 R15'' Optional 185/65 R15" ELECTRICAL SYSTEM (12V) Battery capacity without climate control (Ah) 40 Battery capacity with climate control (Ah) 50 Alternator without climate control: (A) 70 Alternator with climate control: (A) 70 WEIGHTS - SUPPLIES Kerb weight DIN (kg) 1015 (3-door) - 1030 (5-door) front axle 620 (3-door) - 625 (5-door) rear axle 395 (3-door) - 405 (5-door) Max. weight towable (kg) not braked 400 / 900 Fuel tank (litres) 45 PERFORMANCE Top speed (km/h) 155 Acceleration (sec.): 0 - 100 km/h 14.5 0 - 1000 m sec 36.2 EC FUEL CONSUMPTION (l/100 km) EC Directive 1999/100 urban cycle 7.9 out of town cycle 5.1 combined cycle 6.1 CO2 exhaust emissions (g/Km) 145

ACTIVE - DYNAMIC ENGINE 1.4 - 8V – 77 bhp

No. of cylinders, arrangement 4, in line, front transverse No. of valves 2 Bore x stroke (mm) 72.0 x 84.0 Capacity (cc) 1368 Environmental compatibility EURO 4 Emissions control EOBD Compression ratio 11:1 Max. power output: bhp-EC (kW-EC) 77 (57) at rpm 6000 Peak torque: kgm-EC (Nm-EC) 11.7 (115) at rpm 3000 Timing (control) 1 OHC with mechanical tappets Fuel feed MPI electronic sequential phased Ignition Static with digital electronic control TRANSMISSION Drive front Clutch control hydraulic Gearbox, no. of speeds 5 Ratios: 1st 3.909 : 1 2nd 2.158 : 1 3rd 1.480 : 1 4th 1.121 : 1 5th 0.921 : 1 6th / Reverse 3.818 : 1 Gearbox family C514 Final drive 4.071 STEERING Type rack and pinion with electric drive Turning circle (m) 10 BRAKES - D (disc) - T (drum) Front: (mm) D257 x 22 (ventilated) Rear: (mm) T228 SUSPENSION Front independent MacPherson, telescopic dampers, anti-roll bar with spherical joint links Rear torsion axle and crossbeam. Telescopic hydraulic dampers MEASUREMENTS Wheelbase (mm) 2510 Front/rear track* (mm) front 1473 - rear 1466 Length/Width/Height* (m) 4030 / 1687 / 1490 Luggage compartment VDA (dm3) 275 WHEELS Tyres 175/65 R15'' Optional 185/65 R15" ELECTRICAL SYSTEM (12V) Battery capacity without climate control (Ah) 40 Battery capacity with climate control (Ah) 50 Alternator without climate control: (A) 70 Alternator with climate control: (A) 70 WEIGHTS - SUPPLIES Kerb weight DIN (kg) 1025 (3-door) - 1040 (5-door) front axle 625 (3-door) - 630 (5-door) rear axle 400 (3-door) - 410 (5-door) Max. weight towable (kg) not braked 400 / 1000 Fuel tank (litres) 45 PERFORMANCE Top speed (km/h) 165 Acceleration (sec.): 0 - 100 km/h 13.2 0 - 1000 m sec 34.5 EC FUEL CONSUMPTION (l/100 km) EC Directive 1999/100 urban cycle 7.7 out of town cycle 5.2 combined cycle 6.1 CO2 exhaust emissions (g/Km) 145

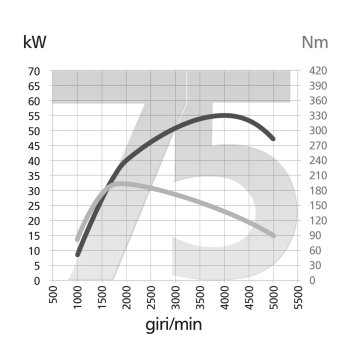

ACTIVE - DYNAMIC ENGINE 1.3 Multijet 16v – 75 bhp

No. of cylinders, arrangement 4, in line, front transverse No. of valves 4 Bore x stroke (mm) 69.6 x 82.0 Capacity (cc) 1248 Environmental compatibility EURO 4 Emissions control EOBD Compression ratio 17.6:1 Max. power output: bhp-EC (kW-EC) 75 (55) at rpm 4000 Peak torque: kgm-EC (Nm-EC) 19.4 (190) at rpm 1750 Timing (control) 2 OHC Rocker finger with hydraulic tappets Fuel feed Multijet Common rail direct injection with turbo and intercooler Ignition By compression TRANSMISSION Drive front Clutch control hydraulic Gearbox, no. of speeds 5 Ratios: 1st 3.909 : 1 2nd 2.238 : 1 3rd 1.444 : 1 4th 1.029 : 1 5th 0.767 : 1 6th / Reverse 3.909 : 1 Gearbox family C510 Final drive 3.563 STEERING Type rack and pinion with electric drive Turning circle (m) 10 BRAKES - D (disc) - T (drum) Front: (mm) D257 x 22 (ventilated) Rear: (mm) T228 SUSPENSION Front independent MacPherson, telescopic dampers, anti-roll bar with spherical joint links Rear torsion axle and crossbeam. Telescopic hydraulic dampers MEASUREMENTS Wheelbase (mm) 2510 Front/rear track* (mm) front 1473 - rear 1466 Length/Width/Height* (m) 4030 / 1687 / 1490


Luggage compartment VDA (dm3) 275 WHEELS Tyres 175/65 R15'' Optional 185/65 R15" ELECTRICAL SYSTEM (12V) Battery capacity without climate control (Ah) 40 Battery capacity with climate control (Ah) 50 Alternator without climate control: (A) 75 Alternator with climate control: (A) 90 WEIGHTS - SUPPLIES Kerb weight DIN (kg) 1090 (3-door) - 1105 (5-door) front axle 700 (3-door) - 705 (5-door) rear axle 390 (3-door) - 400 (5-door) Max. weight towable (kg) not braked 400 / 1000 Fuel tank (litres) 45 PERFORMANCE Top speed (km/h) 165 Acceleration (sec.): 0 - 100 km/h 13.6 0 - 1000 m sec 35.0 EC FUEL CONSUMPTION (l/100 km) EC Directive 1999/100 urban cycle 5.9 out of town cycle 4.0 combined cycle 4.7 CO2 exhaust emissions (g/Km) 123

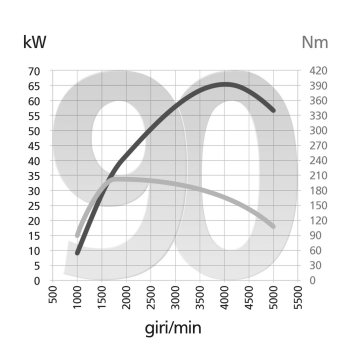

DYNAMIC - EMOTION ENGINE 1.3 Multijet 16v – 90 bhp

No. of cylinders, arrangement 4, in line, front transverse No. of valves 4 Bore x stroke (mm) 69.6 x 82.0 Capacity (cc) 1248 Environmental compatibility EURO 4 Emissions control EOBD Compression ratio 17.6:1 Max. power output: bhp-EC (kW-EC) 90 (66) at rpm 4000 Peak torque: kgm-EC (Nm-EC) 20.4 (200) at rpm 1750 Timing (control) 2 OHC Rocker finger with hydraulic tappets Fuel feed Multijet Common rail direct injection with variable geometry turbo and intercooler Ignition By compression TRANSMISSION Drive front Clutch control hydraulic Gearbox, no. of speeds 6 Ratios: 1st 3.818 : 1 2nd 2.053 : 1 3rd 1.302 : 1 4th 1.959 : 1 5th 0.744 : 1 6th 0.614 : 1 Reverse 3.545 : 1 Gearbox family M20 Final drive 3.722 STEERING Type rack and pinion with electric drive Turning circle (m) 10 BRAKES - D (disc) - T (drum) Front: (mm) D284 x 22 (ventilated) Rear: (mm) T228 SUSPENSION Front independent MacPherson, telescopic dampers, anti-roll bar with spherical joint links Rear torsion axle and crossbeam. Telescopic hydraulic dampers MEASUREMENTS Wheelbase (mm) 2510 Front/rear track* (mm) front 1473 - rear 1466 Length/Width/Height* (m) 4030 / 1687 / 1490 Luggage compartment VDA (dm3) 275 WHEELS Tyres 185/65 R15'' Optional 195/55 R16"; 205/45 R17” ELECTRICAL SYSTEM (12V) Battery capacity without climate control (Ah) / Battery capacity with climate control (Ah) 50 Alternator without climate control: (A) / Alternator with climate control: (A) 90 WEIGHTS - SUPPLIES Kerb weight DIN (kg) 1130 (3-door) - 1145 (5-door) front axle 735 (3-door) - 740 (5-door) rear axle 395 (3-door) - 405 (5-door) Max. weight towable (kg) not braked 400 / 1000 Fuel tank (litres) 45 PERFORMANCE Top speed (km/h) 175 Acceleration (sec.): 0 - 100 km/h 11.9 0 - 1000 m sec 33.0 EC FUEL CONSUMPTION (l/100 km) EC Directive 1999/100 urban cycle 5.9 out of town cycle 3.9 combined cycle 4.6 CO2 exhaust emissions (g/Km) 122

EMOTION ENGINE 1.9 Multijet 8v – 120 bhp

No. of cylinders, arrangement 4, in line, front transverse No. of valves 2 Bore x stroke (mm) 82.0 x 90.4 Capacity (cc) 1910 Environmental compatibility EURO 4 Emissions control EOBD Compression ratio 18.0:1 Max. power output: bhp-EC (kW-EC) 120 (88) at rpm 4000 Peak torque: kgm-EC (Nm-EC) 28.5 (280) at rpm 2000 Timing (control) 1 OHC with mechanical tappets Fuel feed Multijet Common rail direct injection with variable geometry turbo and intercooler Ignition By compression TRANSMISSION Drive front Clutch control hydraulic Gearbox, no. of speeds 6 Ratios: 1st 3.818 : 1 2nd 2.053 : 1 3rd 1.302 : 1 4th 1.959 : 1 5th 0.744 : 1 6th 0.614 : 1 Reverse 3.545 : 1 Gearbox family M32 Final drive 3.350 STEERING Type rack and pinion with electric drive Turning circle (m) 11 BRAKES - D (disc) - T (drum) Front: (mm) D284 x 22 (ventilated) Rear: (mm) D264 x 11 SUSPENSION Front independent MacPherson, telescopic dampers, anti-roll bar with spherical joint links Rear torsion axle and crossbeam. Telescopic hydraulic dampers MEASUREMENTS Wheelbase (mm) 2510 Front/rear track* (mm) front 1473 - rear 1466 Length/Width/Height* (m) 4030 / 1687 / 1490 Luggage compartment VDA (dm3) 275 WHEELS Tyres 185/65 R15'' Optional 195/55 R16"; 205/45 R17” ELECTRICAL SYSTEM (12V) Battery capacity without climate control (Ah) / Battery capacity with climate control (Ah) 60 Alternator without climate control: (A) / Alternator with climate control: (A) 120 WEIGHTS - SUPPLIES Kerb weight DIN (kg) 1205 (3-door) - 1220 (5-door) front axle 805 (3-door) - 810 (5-door) rear axle 400 (3-door) - 410 (5-door) Max. weight towable (kg) not braked 400 / 1000 Fuel tank (litres) 45 PERFORMANCE Top speed (km/h) 190 Acceleration (sec.): 0 - 100 km/h 10.0 0 - 1000 m sec 31.0 EC FUEL CONSUMPTION (l/100 km) EC Directive 1999/100 urban cycle 7.5 out of town cycle 4.5 combined cycle 5.6 CO2 exhaust emissions (g/Km) 149

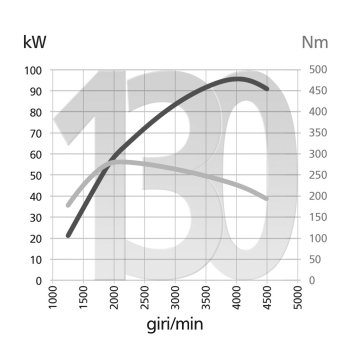

EMOTION ENGINE 1.9 Multijet 8v – 130 bhp

No. of cylinders, arrangement 4, in line, front transverse No. of valves 2 Bore x stroke (mm) 82.0 x 90.4 Capacity (cc) 1910 Environmental compatibility EURO 4 Emissions control EOBD Compression ratio 18.0:1 Max. power output: bhp-EC (kW-EC) 130 (96) at rpm 4000 Peak torque: kgm-EC (Nm-EC) 28.5 (280) at rpm 2000 Timing (control) 1 OHC with mechanical tappets Fuel feed Multijet Common rail direct injection with variable geometry turbo and intercooler Ignition By compression TRANSMISSION Drive front Clutch control hydraulic Gearbox, no. of speeds 6 Ratios: 1st 3.818 : 1 2nd 2.053 : 1 3rd 1.302 : 1 4th 0.959 : 1 5th 0.744 : 1 6th 0.614 : 1 Reverse 3.545 : 1 Gearbox family M32 Final drive 3.650 STEERING Type rack and pinion with electric drive Turning circle (m) 11 BRAKES - D (disc) - T (drum) Front: (mm) D284 x 22 (ventilated) Rear: (mm) D264 x 11 SUSPENSION Front independent MacPherson, telescopic dampers, anti-roll bar with spherical joint links, special sport springs Rear torsion axle and crossbeam. Telescopic hydraulic dampers special sport springs MEASUREMENTS Wheelbase (mm) 2510 Front/rear track* (mm) front 1473 - rear 1466 Length/Width/Height* (m) 4030 / 1687 / 1490 Luggage compartment VDA (dm3) 275 WHEELS Tyres 205/45 R17'' Optional 185/65 R15" ELECTRICAL SYSTEM (12V) Battery capacity without climate control (Ah) / Battery capacity with climate control (Ah) 60 Alternator without climate control: (A) / Alternator with climate control: (A) 120 WEIGHTS - SUPPLIES Kerb weight DIN (kg) 1205 front axle 805 rear axle 400 Max. weight towable (kg) not braked 400 / 1000 Fuel tank (litres) 45 PERFORMANCE Top speed (km/h) 200 Acceleration (sec.): 0 - 100 km/h 9.5 0 - 1000 m sec 30.0 EC FUEL CONSUMPTION (l/100 km) EC Directive 1999/100 urban cycle 7.6 out of town cycle 4.6 combined cycle 5.7 CO2 exhaust emissions (g/Km) 150 12
