TECHNICAL Specifications


Bravo FIRE 1.4 16V 90 bhp

ENGINE
No. of cylinders, arrangement 4, in line, front transverse
Bore x stroke (mm) 72.0 x 84.0
Capacity (cc) 1368
Compression ratio 11:1
Max. power output EC: kW (bhp) at rpm 66 (90) at 5500 rpm
Peak torque EC: Nm (kgm) at rpm 128 (13.0) at 4500 rpm
Emissions compliance Euro 4
Emissions control three-way catalytic converter in engine bay, 2 heated Lambda probes, EOBD
Timing (drive) 2 OHC (toothed belt), hydraulic tappets
Fuel supply MPI electronic sequential phased, returnless system
TRANSMISSION
Drive front
Gearbox, no. of speeds 6 + Reverse
ELECTRICAL SYSTEM
Battery: capacity (Ah) 50 Ah
STEERING
Steering box Dualdrive™ electrical power steering; Turning circle between kerbs (m): 16" / 17" tyres 10.4; 18" tyres 11
BRAKES - D (disc) with ABS
Front: Ø mm D 257 X 22 mm (ventilated); Rear: Ø mm D 251 X 10 mm
SUSPENSION
Front independent MacPherson, dual rate telescopic dampers, antiroll bar with spherical joint con rods; Rear interconnected wheels with torsion rear axle, telescopic dampers, anti-roll bar
WHEELS
Tyres 195/65 R 15 91H; 205/55 R 16 91H; 225/45 R 17 91V

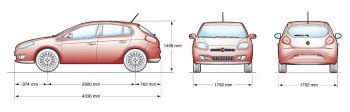

DIMENSIONS
Wheelbase (mm) 2600; Front/rear track (mm) 1538/1532; Length/Width (mm) 4336/1792; Height empty (mm) 1498; Luggage compartment capacity VDA (dm3): standard with Fix&Go 400 with rear seat folded down 1175
SUPPLIES - WEIGHTS
Fuel tank (|) 58
Kerb weight DIN (kg) 1205
Max. towable weight (kg) 1000
PERFORMANCE - CONSUMPTION
Top speed (km/h) 179
Acceleration (s): 0 - 100 km/h (2 adults + 20 kg) 12.5
Consumption - EC Dir. 1999/100 (l/100 km) urban 8.7; out of town 5.6; combined 6.7
Combined CO2 emissions (g/km) 158

Bravo MJET 1.9 8V 120 bhp

ENGINE
No. of cylinders, arrangement 4, in line, front transverse
Bore x stroke (mm) 82.0 x 90.4
Capacity (cc) 1910
Compression ratio 18:1
Max. power output EC: kW (bhp) at rpm 88 (120) at 4000 rpm
Peak torque EC: Nm (kgm) at rpm 255 (26) at 2000 rpm
Emissions compliance Euro 4
Emissions control 2 oxidising catalysers (in engine bay and under body), electrical EGR valve, EOBD
Timing (drive) 1 OHC (toothed belt), mechanical tappets
Fuel supply direct injection, Common Rail Multijet with electronic control, variable geometry turbo and intercooler
TRANSMISSION
Drive front
Gearbox, no. of speeds 5 + Reverse
ELECTRICAL SYSTEM
Battery: capacity (Ah) 60 Ah
STEERING
Steering box Dualdrive™ electrical power steering
Turning circle between kerbs (m): 16" / 17" tyres 10.4; 18" tyres 11


BRAKES - D (disc) with ABS
Front: Ø mm D 284 X 22 mm (ventilated); Rear: Ø mm D 251 X 10 mm
SUSPENSION
Front independent MacPherson, dual rate telescopic dampers, antiroll bar with spherical joint con rods; Rear interconnected wheels with torsion rear axle, telescopic dampers, anti-roll bar
WHEELS
Tyres 195/65 R 15 91H; 205/55 R 16 91H; 225/45 R 17 91V
DIMENSIONS
Wheelbase (mm) 2600; Front/rear track (mm) 1538/1532; Length/Width (mm) 4336/1792; Height empty (mm) 1498
Luggage compartment capacity VDA (dm3): standard with Fix&Go 400 with rear seat folded down 1175
SUPPLIES - WEIGHTS
Fuel tank (|) 58
Kerb weight DIN (kg) 1320
Max. towable weight (kg) 1300
PERFORMANCE - CONSUMPTION
Top speed (km/h) 194
Acceleration (s): 0 - 100 km/h (2 adults + 20 kg) 10.5
Consumption - EC Dir. 1999/100 (l/100 km) urban 6.9; out of town 4.3; combined 5.3
Combined CO2 emissions (g/km) 139

Bravo MJET 1.9 16V 150 bhp

ENGINE
No. of cylinders, arrangement 4, in line, front transverse
Bore x stroke (mm) 82.0 x 90.4
Capacity (cc) 1910
Compression ratio 17.5:1
Max. power output EC: kW (bhp) at rpm 110 (150) at 4000 rpm
Peak torque EC: Nm (kgm) at rpm 305 (31) at 2000 rpm
Emissions compliance Euro 4
Emissions control 2 oxidising catalysers (in engine bay and under body), electrical EGR valve, EOBD
Timing (drive) 2 OHC (toothed belt), hydraulic tappets (indirect roller drive)
Fuel supply direct injection, Common Rail Multijet with electronic control, variable geometry turbo and intercooler
TRANSMISSION
Drive front
Gearbox, no. of speeds 6 + Reverse
ELECTRICAL SYSTEM
Battery: capacity (Ah) 60 Ah
STEERING
Steering box Dualdrive™ electrical power steering; Turning circle between kerbs (m): 16" / 17" tyres 10.4; with 18" tyres 11
BRAKES - D (disc) with ABS
Front: Ø mm D 281 X 26 mm (ventilated); Rear: Ø mm D 251 X 10 mm
SUSPENSION
Front independent MacPherson, dual rate telescopic dampers, antiroll bar with spherical joint con rods; Rear interconnected wheels with torsion rear axle, telescopic dampers, anti-roll bar
WHEELS
Tyres 205/55 R 16 91V; 225/45 R 17 91V; 225/40 R 18 92V REINFORCED
(with specific steering box)
DIMENSIONS
Wheelbase (mm) 2600; Front/rear track (mm) 1538/1532 1530/1524 (with 18” tyres); Length/Width (mm) 4336/1792; Height empty (mm) 1498
Luggage compartment capacity VDA (dm3): standard with Fix&Go 400 with rear seat folded down 1175
SUPPLIES - WEIGHTS
Fuel tank (|) 58
Kerb weight DIN (kg) 1360
Max. towable weight (kg) 1300
PERFORMANCE - CONSUMPTION
Top speed (km/h) 209
Acceleration (s): 0 - 100 km/h (2 adults + 20 kg) 9.0
Consumption - EC Dir. 1999/100 (l/100 km): urban 7.6; out of town 4.5; combined 5.6; Combined CO2 emissions (g/km) 149
